7.5kw 7m3/H spray Mining Dry Mix Shotcrete Machine

Name: 75kw 7m3H spray Mining Dry Mix Shotcrete Machine
Brand: KEMING
Price: 1 USD

Brand Name : KEMING

Model Number : KPZ-7

Certification : CE,MA

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Per Month

Delivery Time : 10~20 Work Day

Packaging Details : Export Wooden Case

Capacity : 6~7m3/h

Pressure : 0.6Mpa

Max aggregate : 20mm

Main power : 7.5kW

Horz. distance : 100m

Vert. distance : 40m

Contact Now

New Durable Dry Mix Shotcrete Machine For Mining With 7m3 Efficiency

Shotcrete Machine Features:

1. KPZ series shotcrete machine can be used to spray dry and half wet concrete. .

2. KPZ-7 Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box etc.

3. KPZ-7 Dry Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

Shotcrete Machine Application:

1. KPZ-7 Dry Shotcrete Machine can be used for dry or half wet concrete spray construction.

2. KPZ-7 Dry Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

Shotcrete Machine Parameters:

Model	KPZ-7 Shotcrete Machine
Capacity	7m3/h
Conveying dist. max.	≤200m
Suitable mixture ratio	cement/sand and gravel=1:4~5
Suitable water/cement ratio	≤0.2~0.38
Aggregate size max.	φ20mm
Conveying hose ID.	φ57/ 64mm
Operating pressure	0.2~0.4Mpa
Air consumption	10 m3/min
Material feeding height	1.2m
Motor power	7.5kw
Dimensions(Length×width×height)	1520×820×1350mm
Total weight	900kg

Product Tags:

Mining Dry Mix Shotcrete Machine

7m3/H Dry Mix Shotcrete Machine

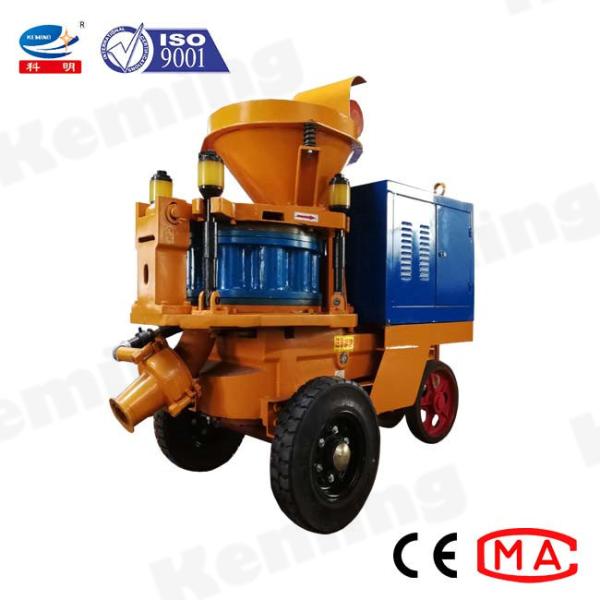

7.5kw 7m3/H spray Mining Dry Mix Shotcrete Machine Images
